2D Birefringence Measurement System

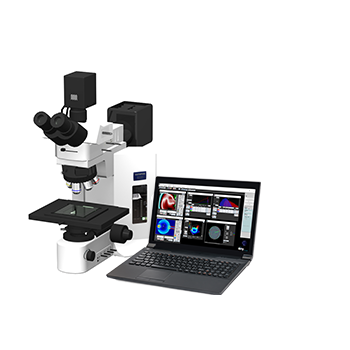

PA Series PA-micro / PA-micro-S

This equipment measures birefringence and phase difference with a high resolution of 5 million pixels at high speed, for low phase difference with a measurement range of 0 to 130 nm.
Predict with FOV of microscope.

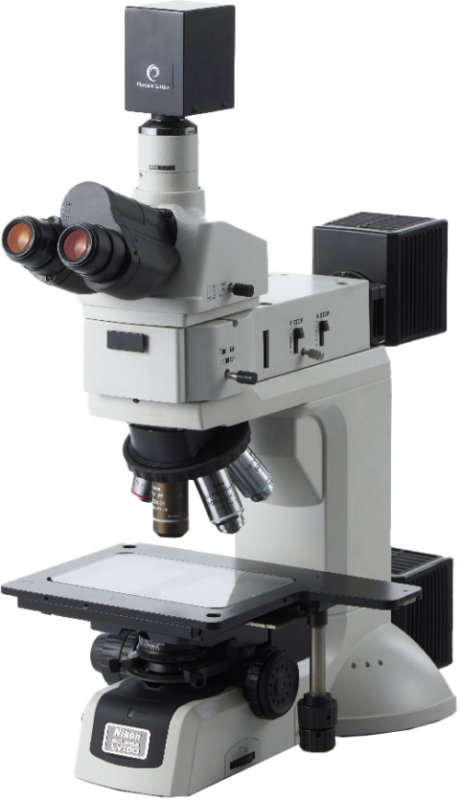

The included microscope can be selected from either Olympus or Nikon.

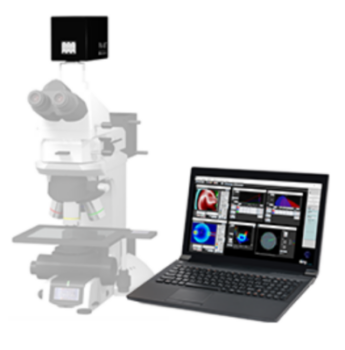

PA-micro-S is only a measurement camera head (Microscope not included).
Please contact us for a compatible microscope.

PA-micro Specifications
	measurement
Output	Phase shift / retardation (nm), Axis orientation (°) Stress equivalent (Mpa) ※As part as "data processing" option
Range	0～130nm
Repeatability	σ<1.0nm
	Sensor part
Resolution	2056 × 2464（≒5M）pixels
Operating wavelength	520nm
	Hardware
Dimensions (W x D x H)	270 × 500 × 610mm
Objective lens dimensions	About 140 × 170μm~About 3.5 × 4.2mm Objective lens　x2,x5,x10,x20,x50
Weight	Approx. About 18kg
	Miscellaneous
Interface	GigE (camera signal)
Power supply	AC100～240V（50/60Hz） / ～6.0A
Software	PA-View
Accessories	Desktop PC, User manual ※Microscope included in PA-micro
	Option
Zoom lens	No
Data processing function	Yes
Field-Of-View (FOV) Correction function	Subject to discussion
Lens analysis function	Yes
Real-time analysis function	Yes
Remote control function	Yes
Chromatic dispersion mode	No
WPA High retardation	No
Lens Measurement Stage	No
Shading cover for PA/WPA	Yes
Photoelasticity measurement	No

PA-micro-S Specifications
	measurement
Output	Phase shift / retardation (nm), Axis orientation (°) Stress equivalent (Mpa) ※As part as "data processing" option
Range	no guarantee
Repeatability	no guarantee
	Sensor part
Resolution	2056 × 2464（≒5M）pixels
Operating wavelength	520nm
	Hardware
Dimensions (W x D x H)	60 × 70 × 85mm
Objective lens dimensions	Depens on microscope
Weight	Approx. About 0.5kg
	Miscellaneous
Interface	GigE (camera signal)
Power supply	AC100～240V（50/60Hz） / ～6.0A
Software	PA-View
Accessories	Desktop PC, User manual
	Option
Zoom lens	No
Data processing function	Yes
Field-Of-View (FOV) Correction function	Subject to discussion
Lens analysis function	Yes
Real-time analysis function	Yes
Remote control function	Yes
Chromatic dispersion mode	No
WPA High retardation	No
Lens Measurement Stage	No
Shading cover for PA/WPA	Yes
Photoelasticity measurement	No
