PRODUCT DETAILS

High-speed Polarization Camera

CRYSTA Nova S16

1 million pixels at 16,000 frames/second
Next-generation polarization high-speed camera

  • For universities and research institutes (stress propagation, rheology, non-Newtonian fluids, interferometers, etc.)
  • Combination of high-speed shooting performance and a compact, lightweight chassis
  • Equipped with a newly improved high-resolution polarization CMOS sensor
  • Direct recording to 128GB dedicated memory

Nova_S

Specifications
System features
  • Ultrafast, high-resolution polarization imaging
Image sensor
  • Polarized high-speed image sensor
Polarizer
  • Linear polarizer
Polarization operating wavelength
  • 500～550nm
Bit depth
  • A/D 12bit
Maximum resolution
*monochrome image
  • 1024 × 1024pixels
Maximum resolution
*polarization image
  • 512 × 512pixels
    *This is the resolution when performing polarization analysis using Photron software.
Frame rate
*with maximum resolution
  • 1,000 ～ 16,000fps
Maximum frame rate
  • 1,100,000fps
Minimum exposure time
  • 0.2usec
Lens mount
  • G type F mount *Option：C mount, M42 mount
Digital interface
  • Gigabit Ethernet
Save data format
  • RAW、AVI、BMP、CSV etc.
    * The format of saved data varies depending on the software used. Please contact us for details.
AC power supply voltage
  • 100～240V
AC power supply frequency
  • 50 ～ 60Hz
DC power supply voltage
  • 22 - 32V
DC power consumption
  • 150VA
Memory size
  • 128GB
Recording time
  • 5.46 sec.
    * When shooting at 16,000fps

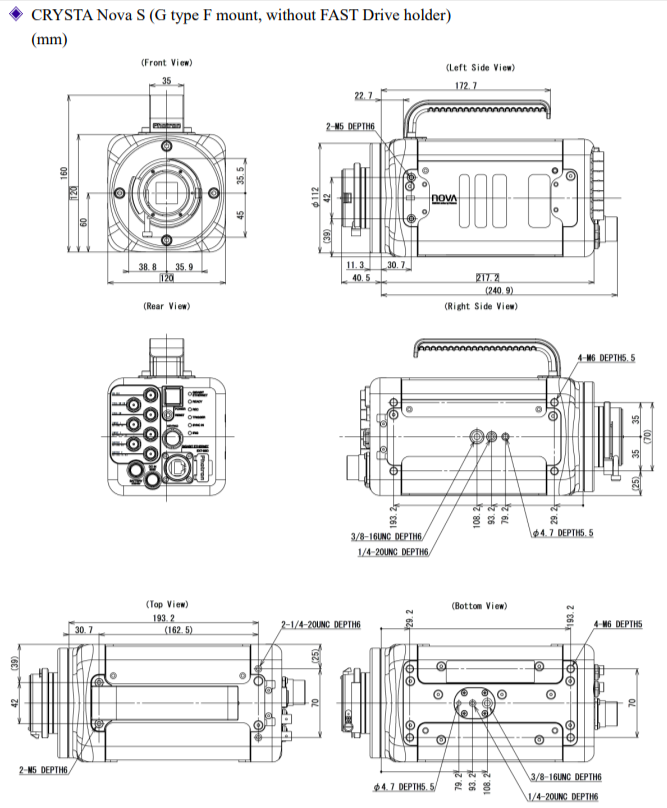

External Dimensions
(W x H x D)
  • 120×120×217.2mm
Weight
  • 3.2Kg
Trigger input
  • Supports TTL, SW and software trigger.
